The Alpine R2-SB12V combines a next-generation 12" R-Series subwoofer with Alpine's premium Halo vented enclosure and expandable ProLink™ design. Rated at 750 watts RMS with a 2-ohm final load and deep bass extension down to 24Hz, it delivers powerful, accurate R-Series bass with a custom-quality appearance.
Experience deep, authoritative R-Series bass with the Alpine R2-SB12V 12" Alpine Halo Preloaded Subwoofer Enclosure. Featuring Alpine's next-generation R2-W12D4 R-Series subwoofer, premium Halo styling, and expandable ProLink™ technology, this high-performance vented enclosure delivers powerful low-frequency output without requiring a custom-built subwoofer box.
Rated at an impressive 750 watts RMS and 2,250 watts peak, the R2-SB12V combines a Kevlar-reinforced pulp cone, large double-stacked magnets, Alpine's H.A.M.R. surround technology, and an optimized ported enclosure to produce deep, controlled bass with excellent accuracy at high output levels.

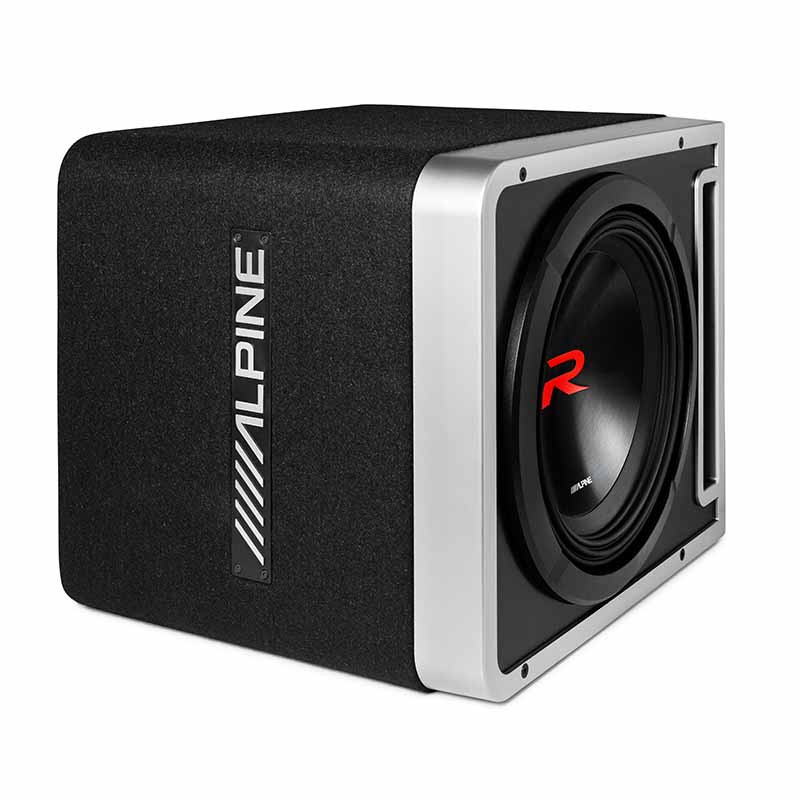

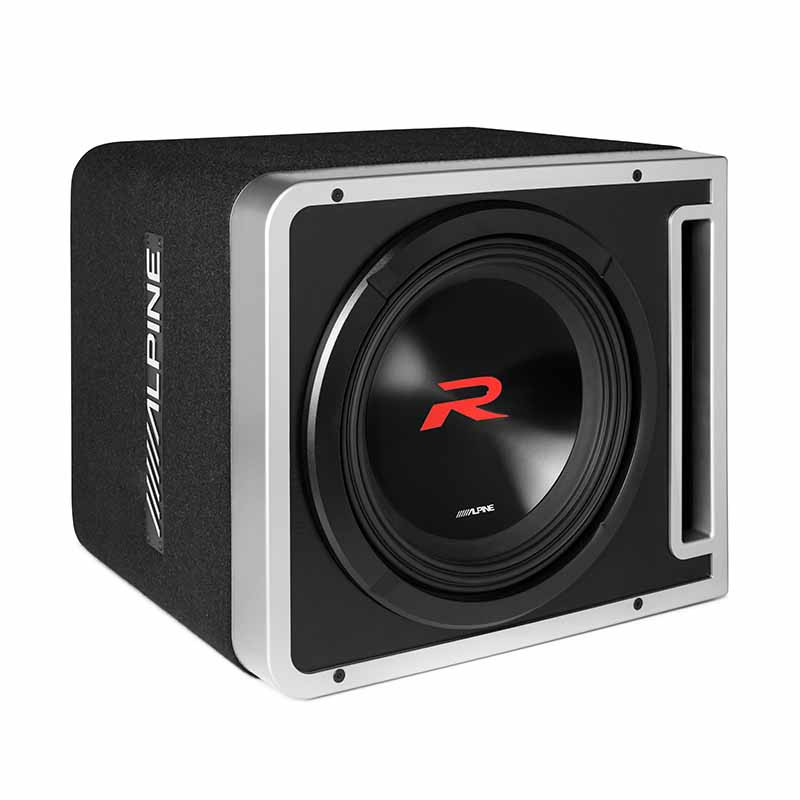

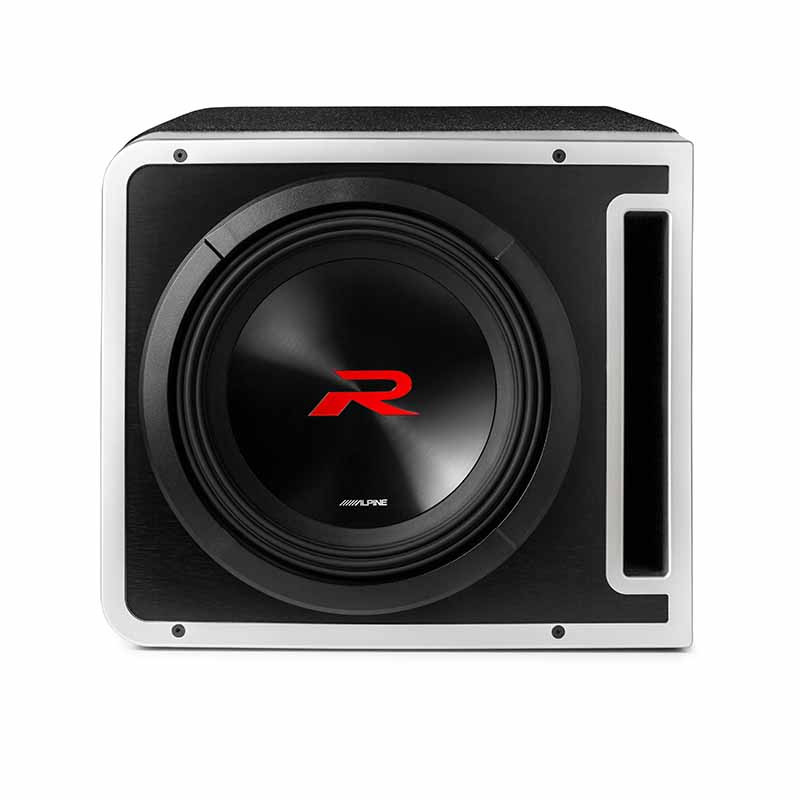

The R2-SB12V shares the unmistakable styling of Alpine's Halo product family. Curved enclosure edges, silver accent trim, a brushed metallic front baffle, and premium black carpeting give the enclosure the appearance of a professionally fabricated custom system without requiring custom enclosure construction.
The cabinet is built from sturdy 3/4" MDF to provide the rigid foundation required for serious low-frequency performance. Alpine also incorporates threaded mounting inserts that allow the subwoofer orientation to be reversed for additional installation flexibility.
Alpine's innovative ProLink™ technology lets you start with a single R2-SB12V enclosure and expand the system later. Using the optional ProLink™ Linking Kit, a second compatible Alpine Halo enclosure can be mechanically connected to create a clean, integrated dual-subwoofer system.
This gives you the flexibility to build your system in stages. Start with one high-performance 12" R-Series enclosure today and add a second later when you want even greater bass output and impact.
The R2-SB12V comes preloaded with Alpine's next-generation R2-W12D4 12" R-Series subwoofer. Large double-stacked magnets provide increased motor force for deeper bass and tighter control over cone movement compared with the previous generation.
An integrated Faraday ring helps reduce distortion, while the Kevlar-reinforced pulp cone provides the strength and rigidity required for dependable operation at high output levels. The larger 12" cone also moves more air than the 10" version, delivering greater low-frequency impact and deeper bass extension.
The R2-Series subwoofer uses a polypropylene and ceramic composite dust cap engineered for excellent rigidity and internal damping. Its ability to absorb unwanted vibration helps smooth the bass response while its high heat resistance contributes to dependable performance during extended listening sessions.
Alpine's High-Amplitude Multi-Roll H.A.M.R. surround technology allows the subwoofer cone to move through an impressive 20mm X-Max while maintaining control. Greater cone excursion allows the R2-W12D4 to move substantial amounts of air, contributing to increased output while maintaining accuracy and reliability.
The R2-SB12V's vented enclosure uses an optimized port with rounded internal edges to improve airflow and maximize subwoofer performance. Proper enclosure volume and port design work together with the R2-W12D4 to deliver deeper, cleaner, and more consistent bass than simply installing the same subwoofer into a generic enclosure.
Alpine also uses 12-gauge oxygen-free copper internal speaker wiring, and the enclosure is configured specifically for high-performance mono amplifiers such as the Alpine R-A75M.
| Model | Alpine R2-SB12V |
| Series | Next-Generation R-Series Alpine Halo |
| Included Subwoofer | Alpine R2-W12D4 |
| Subwoofer Size | 12" |
| Enclosure Type | Vented / Ported Alpine Halo Enclosure |
| RMS Power Handling | 750 Watts RMS |
| Peak Power Handling | 2,250 Watts Peak |
| Voice Coil Configuration | Dual 4-Ohm Voice Coils |
| Final Impedance | 2 Ohms, Wired in Parallel |
| Frequency Response | 24 Hz – 200 Hz |
| Sensitivity | 85 dB (1W/1m) |
| Voice Coil Diameter | 65.5mm |
| X-Max | 20mm |
| Magnet Weight | 144 oz. |
| Cone Material | Kevlar-Reinforced Pulp |
| Dust Cap | Polypropylene / Ceramic Composite |
| Surround | High-Amplitude Multi-Roll H.A.M.R. |
| Enclosure Construction | CARB-Compliant 3/4" MDF |
| Internal Wiring | 12-Gauge OFC Speaker Wire |
| Dimensions | 17" W × 14.625" H × 15" D |
| Recommended Amplifier | Alpine R-A75M Mono Amplifier |
| ProLink™ Compatible | Yes — Linking Kit Sold Separately |
| CTA-2031 Compliant | Yes |
| Built-In Amplifier | No — External Amplifier Required |
The Alpine R2-SB12V is a passive loaded subwoofer enclosure and does not include a built-in amplifier. A compatible mono amplifier, properly sized amplifier wiring kit, circuit protection, audio-signal connection, mounting hardware, and installation are required for operation.
With its dual 4-ohm voice coils wired internally for a 2-ohm final load and 750-watt RMS rating, the R2-SB12V pairs exceptionally well with Alpine's R-A75M mono amplifier.
A high-performance 750-watt RMS subwoofer system requires properly sized power and ground wiring, appropriate circuit protection, a clean audio signal, secure enclosure mounting, and accurate amplifier tuning.
Correct gain, crossover, subsonic-filter, and bass-control settings are especially important with a high-output R-Series system. Professional installation helps ensure maximum performance while protecting the subwoofer, amplifier, and vehicle electrical system.
Purchase your Alpine R2-SB12V from Access 1 Alarm & Audio, Cleveland, Ohio's premier mobile electronics shop. We have served Cleveland and Northeast Ohio for over 20 years with professional car audio installation, factory-radio integration, security systems, remote starters, and mobile electronics upgrades.
Amplifier, ProLink™ Linking Kit, wiring, integration components, installation materials, and labor are additional unless specifically included with your purchase.
| Loaded Enclosure Specs | |
|---|---|
| Brand | Alpine |
| Woofer Size | 12" |
| Woofer Quantity | 1 |
| Woofer Material | Kevlar Reinforced Pulp |
| Enclosure Type | Ported |
| Enclosure Color | Black With Silver Highlights |
| Enclosure Width | 17" |
| Enclosure Height | 15" |
| Enclosure Depth | 15" |
| Power Handling RMS | 750W / 2250W MAX |
| Frequency Response | 24Hz-200Hz |
| Final Impedance | 2 ohm |
| System Type | Single 12" Loaded Ported Enclosure |
| Powered | No |
